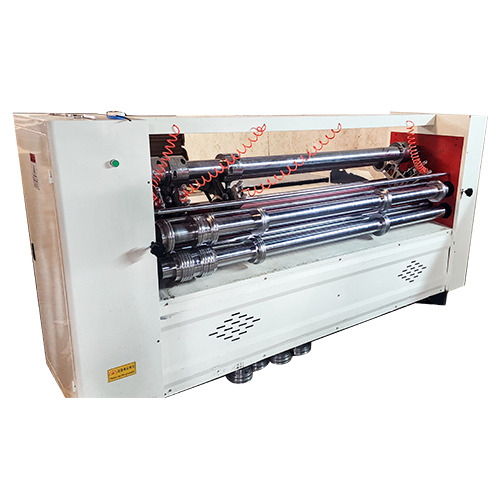

Four Bar Rotary Machine

Four Bar Rotary Machine
Four Bar Rotary Machine
Product Code : SK4B
Brand Name : S. K. PACKAGE MACHINE
Product Description
To meet the diversified needs of our prestigious patrons, we are engaged in offering Four Bar Rotary Machine. The offered machine is manufactured using the best quality components with the help of sophisticated technology under the guidance of our diligent team of professionals. This machine is widely used for cutting and slitting in four pairs. In addition to this, our clients can avail the provided Four Bar Rotary Machine from us at market leading prices.

Features:

  • Longer running time
  • Trouble-free functionality
  • Easy maintenance
  • Smooth operation

Body Design:

  • This machine is heavy duty strong and durable type in design and simple and trouble free to operate
  • The machine also comes with 2 pairs of heavy shafts
  • The front pair is with 4 sets of cutting dies and rear pair is with 4 sets of creasing dies
  • It has a Substantial platform and 2 guides are also provided for effortlessly feeding of sheets

Setting Action

  • The lower shaft of each pair can be elevated or lowered by the rotating side wheel depending on the ply of the board
  • Both the cutting and the creasing dies are made in 2 half for simple to regulate or moves as per the much needed and obligatory measurement on the weighty shafts

Key Features:

  • The machine is strong and robust in design
  • It comprises of graded alloy steel knives for extended life which can further increase the sharpness and even cutting
  • The creasing dies are common in 3 and 5 ply, 7 and 9 ply and above
  • The shafts of machine are escalated on heavy duty bearings for even running with a noise free with graded casting gears and nylon gears
  • The Minimum distance between the 2 dies which is 3 inches
  • All the moving parts are also secured and safe guarded by the safety guards
Technical Data:

Machine Size  Motor (H.P)  Floor Space  Gross Weight (Approx)  Speed / minutes Approx. / Ft
65"  2.0 85" x 55"  1600 - 1700 Kg  300
75"
2.0
100" x 55"  1600 - 1800 Kg
300
85" 2.0
110" x 55"  1800 - 1900 Kg
300
95" 3.0
120" x 55"  1800 - 2000 Kg
300
105" 3.0
130" x 55"  1900 - 2200 Kg
300
120" 3.0
145" x 55"  2000 - 2500 Kg
300
