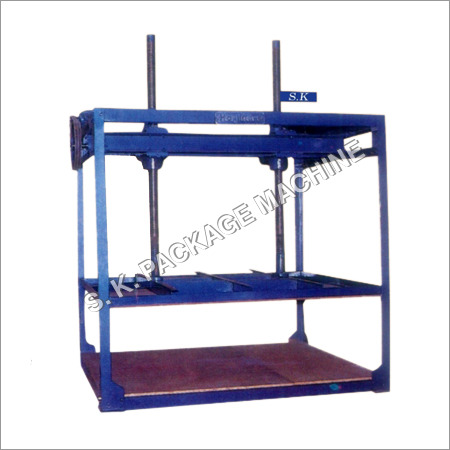

Sheet Press Machine



Sheet Press Machine
Product Description

We are an unparalleled name, engaged in offering a premium quality range of Sheet Press Machine. The offered Sheet Press Machine can be availed by our customers at economical rates.This machine is utilized in the corrugation sheets for post pasting of pressing boards, rolls, ply or lamination for eluding air bubbles and also for preserving its sheet. This machine is intended and created by using the most high grade and superior quality components under the stern supervision of our skilled and proficient team of experts.

Key Features:

  • Robust design
  • Trouble free performance
  • Easy operation
  • Durability

Specifications
Setting Action:

The pressures on the sheets are then managed and controlled by spring action
The lower plate is then fixed and upper plate moves up and down by the adjustable and flexible switch

Body:
This powerfully design machine has been engineered for pressing the corrugated sheet
It is made up of four piles and sheets are then pressed amid the lower and upper movable plate of the machine
Design:
The machine is strong and sturdy in design and has been created using the body of steel angles
It is Sturdy and durable in construction and is simple and trouble free to move up and down
The Electric Motor of 3 Phase A/C 1440 RPM / 440 V ISI marked which is practiced by international standard ISO 9001 2000
All the moving parts are also protected by the safety guards.

    Technical Data
    Machine Size  Motor (H.P)  Floor Space  Machine Height  Gross Weight(Approx)
    55" x 65"  1.5  60" x 80"  140"  700 - 800 Kg
    65" x 75"  30" x 105"
    140"  900 - 1000 Kg.

    Specification Are Subject to change Without Notice.

    Product Code : SKP-R      Brand Name :S. K. PACKAGE MACHINE
